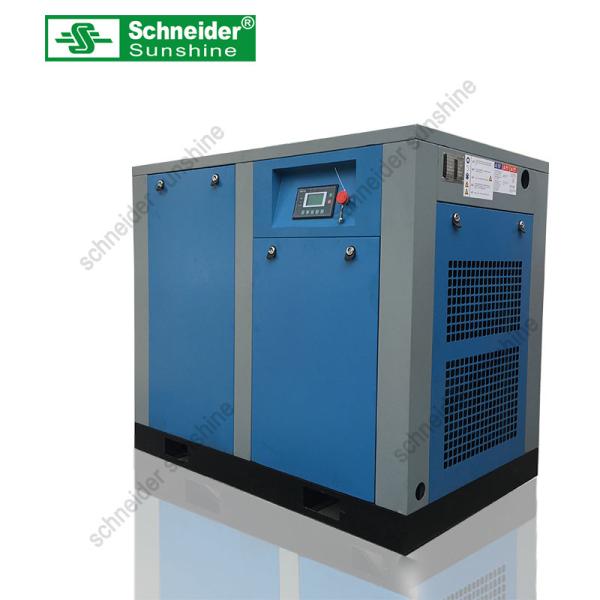

    Water Lubricated Screw Style Air Compressor High Durability For Food Industry

    Ask Lasest Price
    Brand Name : Schneider Sunshine
    Model Number : SRC-30A/W-PM
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 100PCS/month
    Delivery Time : In 30 days after get the value
    • Product Details
    • Company Profile

    Water Lubricated Screw Style Air Compressor High Durability For Food Industry

    30 KW Oil Free water lubricated screw air compressor for food industry 1.10~5.20 m³/min


    Factory Selling Directly Dry Oil Free 30Kw Air Compressors

    Oil free screw air compressors are widely used in industries that require high quality air sources such as: pharmaceutical, food, electronics, chemical, packaging, etc. 100% pure compressed air is a necessary procedure to guarantee satisfactory crafts and product quality, which ensures the production of high-end products safely and risk-free.
    The lubrication system of an oil free screw air compressor is an individual fuel recycling unit. The compression chamber and the bearings were separated by a set of sealed high-performance mechanical assembly. The lubricating oil can only flow in the enclosed area and is prevented to enter the compression chamber, which only contains 100% pure compressed oil-free air. The users could obtain 100% pure compressed air with some slight post-treatment of water and dust removal.


    Why the oil free water spray screw technology is needed?➤ Large capacity
    ➤ High exhaust pressure (single stage compression pressure up to 17 bar)
    ➤ High efficiency
    ➤ Close to isothermal compression
    ➤ Low noise
    ➤ Real oil-free stainless-steel screw rotor
    ➤ Self-lubricating
    ➤ Oil free ISO85730 level certificate
    ➤ Lower application costs
    ➤ Lower maintenance costs
    ➤ “0” pollution to environment clean and safe compressed air
    ➤ no fault, long and stable running ability


    Benefits of Frequency Converter


    Compressed air output adjusts according to demand
    Lower system pressure, energy saving
    No load-unload cycle, no power consumption
    Smooth start, no peak start current
    Greatly reduce energy consumption


    compressor system flow chat


    Water Lubricated Screw Style Air Compressor High Durability For Food Industry

    System flow chare for water lubricating oil-free screw air compressor (water cooling)


    Water Lubricated Screw Style Air Compressor High Durability For Food Industry


    Remote control system


    Water Lubricated Screw Style Air Compressor High Durability For Food Industry


    Technical services:

    Whether pre-sale, in-sale or after-sale, as long as users need technical assistance and consultation, the company will provide free technical support within 24 hours. After successful commissioning on site, our company's after-sales service engineer is responsible for regular operation training for user's operators. During the quality guarantee period, after-sales service engineers arrive at the site within 24 hours (except in remote areas) after receiving notification of failure of user equipment. The honest service of enterprises is highly praised by users.


    PM series energy-saving permanent magnetic airable frequency oil-free screw air compressor detailed parameters

    ModelMaximum
    working pressure
    FADMotor powerNoisePipe diameters of cooling water in and outQuantity of cooling waterQuantity of lubricating waterDimensionWeightAir outlet
    Inlet water 32℃L×W×H
    MpaM³/minKWDBT/HLmmKG
    SRC-06A/W-PM0.80.3~0.785.5573/4″1.510800X800X11004603/4″
    1.00.2~0.65
    SRC-08A/W-PM0.80.35~1.177.5573/4″210800X800X11005103/4″
    1.00.3~1.05
    1.250.24~0.81
    SRC-11A/W-PM0.80.54~1.7211601″2.5261200X800X13006203/4″
    1.00.45~1.42
    1.250.35~1.10
    SRC-15A/W-PM0.80.75~2.4315601″3.5261200X800X13006701″
    1.00.65~2.17
    1.250.60~1.80
    SRC-18A/W-PM0.80.90~3.1318.5631″4261400X1000X15207301″
    1.00.90~2.82
    1.250.60~2.05
    SRC-22A/W-PM0.81.1~3.722631″5301400X1000X15207801″
    1.00.97~3.21
    1.250.85~2.78
    SRC-30A/W-PM0.81.55~5.230661 ½″7401500X1150X150011501 ½″
    1.01.255~4.43
    1.251.1~3.36
    SRC-37A/W-PM0.81.91~6.5037661 ½″9401500X1150X150012001 ½″
    1.01.60~5.33
    1.251.42~4.77
    SRC-45W-PM0.82.50~8.3045681 ½″10901800X1300X175014902″
    1.01.91~6.30
    1.251.70~5.56
    SRC-55W-PM0.83.00~10.3055691 ½″121001800X1300X175015702″
    1.02.60~8.55
    1.252.3~7.67
    SRC-75W-PM0.83.95~13.0075721 ½″181001800X1300X175017502″
    1.03.40~11.50
    1.253.00~9.70
    SRC-90W-PM0.85.00~16.6090731 ½″201202200X1550X180024502 ½″
    1.04.30~14.66
    1.253.72~12.60
    SRC-110W-PM0.86.00~20.20110772″241202200X1550X180025802 ½″
    1.05.00~16.66
    1.254.65~15.56
    SRC-132W-PM0.86.75~22.52132772″301202200X1550X180027002 ½″
    1.06.00~19.97
    1.255.07~16.90
    SRC-160W-PM0.80.85~28.11160793″351603000X1800X210039003″
    1.07.60~25.45
    1.256.70~22.52
