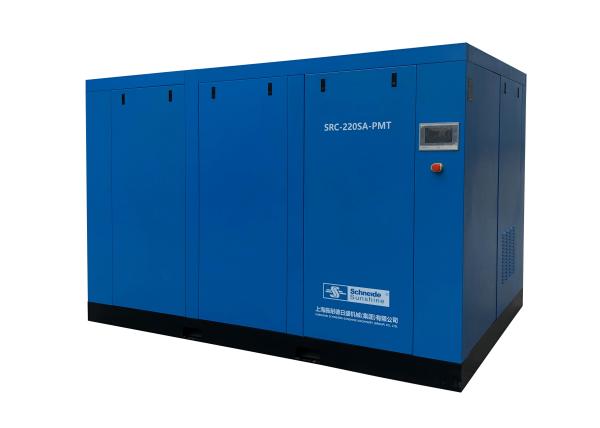

220 KW Energy Efficient Air Compressor 29.63~39.67 m³/min with direct driven​

⊙ rigorous manufacturing process

1. Strict process manufacturing process
Every part is strictly inspected and perfected. Every procedure from raw materials to finished parts is strictly controlled to ensure that every part achieves excellent quality. Every part is optimized to ensure more durability.

2. Super-mute design of the whole machine
The whole chassis adopts super-silent design, low speed and large air volume cooling fan, and large cooler is used to reduce air convection friction, which has excellent cooling effect.

3. Humanized Structure Design
Humanized structure design, simple installation, and follow-up maintenance more convenient, polar maintenance costs, without professional staff, users can also be self-maintenance, maintenance, easy to popularize.

4. Super Clean System and Compressed Air
Stainless steel synthetic material is used in the whole system to ensure the durability, long service life, compressed air "0" pollution, more energy-saving, stable, green and environmental protection.

⊙ Benefits of Frequency Converter

❃ Compressed air output adjusts according to demand
❃ Lower system pressure, energy saving
❃ No load-unload cycle, no power consumption
❃ Smooth start, no peak start current
❃ Greatly reduce energy consumption

⊙ compressor system flow chat

⊙ System flow chare for water lubricating oil-free screw air compressor (water cooling)

⊙ Remote control system

⊙ Technical services:

Whether pre-sale, in-sale or after-sale, as long as users need technical assistance and consultation, the company will provide free technical support within 24 hours. After successful commissioning on site, our company's after-sales service engineer is responsible for regular operation training for user's operators. During the quality guarantee period, after-sales service engineers arrive at the site within 24 hours (except in remote areas) after receiving notification of failure of user equipment. The honest service of enterprises is highly praised by users.

(1) Stable Pressure

The variable speed air compressor adopts PID for precision speed adjustment. Changes in the air amount of

the system will be automatically tracked. The compressor will supply air at a constant pressure, which is the

preset desired pressure plus or minus 0.1bar, to reduce power consumption.

(2) Variable Flow Control

Adopt inverter to drive the compressor can adjust the rotation speed of the motor in real time according to

the actual air compression. In case of high air consumption, the pressure remains unchanged, but the

speed compensates automatically to meet the supply needs. When the air consumption is low, pressure

is maintained constant and speed is automatically reduced to supply compressed air which is just enough.

(3) No Current Impact during Starting

The air compressor is started via invert. The maximum starting current is 1.2 times the rated current for

power frequency start. Hence, our variable speed air compressor exerts little impact on the grid during

starting. It enjoys reduced stress and consequently prolonged service life.

(4) High Economical Efficiency

Throughout the operating life of the air compressor, energy costs account for most of all costs. However,

by using VSD, energy consumption is reduced by 30%.Therefore, the energy cost saved by a variable

speed air compressor for three years is roughly equivalent to purchase price of the unit.

⊙ Energy Efficient Air Compressor detailed parameters
