    Small Size Screw Air Compressor Parts , Industrial Air Compressor Parts

    Ask Lasest Price
    Brand Name : Schneider Sunshine
    Model Number : SAF SLF SAYM
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 1000PCS/month
    Delivery Time : In 30 days after get the value
    • Product Details
    • Company Profile

    Small Size Screw Air Compressor Parts , Industrial Air Compressor Parts

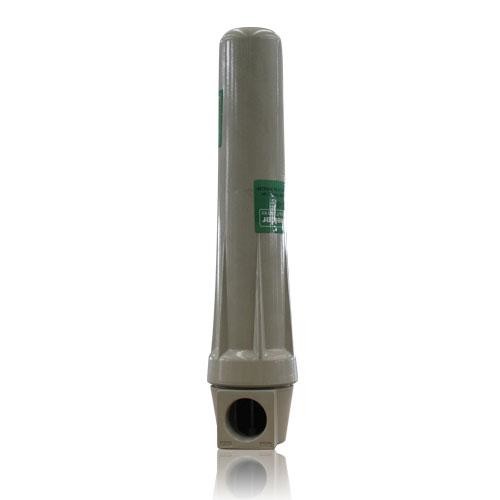

    Precision filter Dust Precision Filter High Efficiency Oil Level (Q P S C)

    Series of products adopt the principle of condensation filtration and use the working principle of gravity sedimentation to collect small foggy particles to separate gas-liquid and dust particles. The filter element assembly has the advantages of high purity, small size, long service life and convenient installation, and is suitable for matching with various specifications of dryer equipment. It has the characteristics of small size, compact structure, high filtration efficiency, convenient use and maintenance. It is specially designed to provide clean compressed air source for pneumatic control, pneumatic instruments, pneumatic components and industrial gas in chemical, light textile, petroleum, metallurgy, textile, electronics, telecommunications and other industries.
    ➤ Intake pressure: 0.6-1.0 MPa
    ➤ Inlet air temperature: 0~50℃
    ➤ Initial pressure drop: <0.02 MPa
    ➤ Export Gas Oil Content: ≤0.1μm
    ➤ Air handling capacity: 1.2~200 Nm³/min


    Precision filter detailed parameters

    GradesQ-Class Precision FilterP-Class High Efficiency Precision FilterS-Class High Efficiency Precision FilterC-Class deodorant activated carbon filters
    Scope of applicationPre-filtration of General Reciprocating Air CompressorPre-filtration of General Spiral Air CompressorPost-filter of general air compressorSpecial Purpose for High Precision Filtration
    Texture of materialCeramic filter elementMultilayer Glass Fiber FilterMultilayer Glass Fiber FilterActivated carbon filter
    Filter impurity3μm0.5μm0.01μm0.01μm
    Oil content3PPM0.5PPM0.01PPM0.003PPM
    Maximum temperature65℃65℃65℃65℃
    General pressure difference0.2kg/cm³0.2kg/cm³0.2kg/cm³0.2kg/cm³
    Maximum differential pressure0.5Micron0.7Micron0.7Micron0.7Micron
    functionA large amount of oil and gas in compressed air can be filtered within 3PPM and impurity particles can be filtered to 3um.A large amount of oil and gas in compressed air is filtered to less than 0.5PPM and impurity particles are filtered to 0.5um.A large amount of oil and gas in compressed air is filtered to 0.01 PPM, and impurity particles in air are filtered to 0.01 Micron to reach the oil-free standard of high quality compressed air.It is generally used to filter odor, non-fine oil and superfine particles in compressed air.
    Model number (SAF-)004007015024035060090120150240360450600900120015001800
    caliber3/4″3/4″3/4″1½″1½″1½″2″2″2″3″5″6″8″8″8″8″10″
    General discharge0.40.71.52.43.5691215.12436456090120150180
    Maximum pressure1616161616161616161212121010101010
    Weight (kg)1.11.11.12.22.22.74.256628.5137141184213248317465


    Dust Precision Filter Detailed Parameters

    ModelsSLF-1SLF-2SLF-3SLF-6SLF-10SLF-20SLF-30SLF-40SLF-60SLF-100SLF-150SLF-300
    Air Capacity m³/min1.22.53.66.810.9223243.567110160310
    Air inlet or outlet½″1″1½″DN40DN65DN80DN80DN100DN125DN125DN150DN200
    High(mm)91811001150115012201330138014201490181019501950
    Tube diameter(mm)768994129142164190230262300350400
    Weight(Kg)192225426281114144174191202230



    High Efficiency Oil Detailed Parameters

    ModelsSAYM-1SAYM-2SAYM-3SAYM-6SAYM-10SAYM-20SAYM-30SAYM-40SAYM-60SAYM-100SAYM-150SAYM-300
    Air Capacity m³/min1.22.53.66.810.9223243.567110160310
    Air inlet or outlet½″1″1½″DN40DN65DN80DN80DN100DN125DN125DN150DN200
    High(mm)91811001150115012201330138014201490181019501950
    Tube diameter(mm)768994129142164190230262300350400
    Weight(Kg)192225426281114144174191202230

    Small Size Screw Air Compressor Parts , Industrial Air Compressor PartsSmall Size Screw Air Compressor Parts , Industrial Air Compressor Parts
