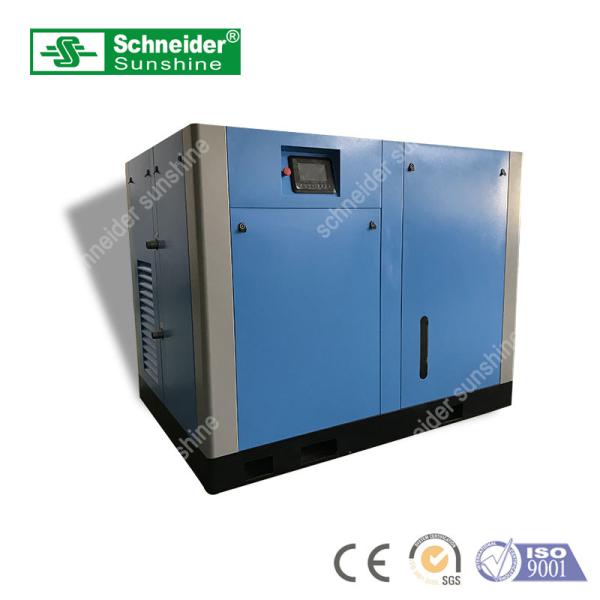

Oil Free Rotary Screw Air Compressor Schneider Sunshine 220KW

⊙ The technical advantage water lubricating oil-free screw air compressors

1. With the fifth generation of oil-free screw airend technology. The compressor airend and system adopt stainless alloy, thus the technological transcendence from the copper airend to the stainless steel airend is realized.

2. Integrated design is adopted for the whole machine. There are no complex pipelines and lines, and the fault points are less and more stable.

3. Less maintenance consumables (air filter, water filter), easy maintenance, no professional staff is required to operate it, and less maintenance costs.

4. There is absolutely no oil in compressor system, without any oil pollution risk, it gives guarantee of no oil in generated compressed air.

5. Volumetric efficiency is higher based no isothermal compression. More than 15% energy is averagely saved compared with dry type two stage compression oil-free screw air compressor, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50℃, and there is risk of being burned.

6. Wider pressure ranges:2-40Bar.

7. The full intelligent CNC precise machining technology and the force balance of the airend running can ensure lower noise, smaller vibration, and longer service life.

8. Averagely more than 10% air delivery is generated for the same power of water lubricating screw air compressors than the same power dry oil-free screw air compressor.

9. More simple and convenient operation, PLC intelligent control is adopted. Automatic fault detection, fault warning, maintenance reminder, fault reminder, automatic protection function. It can realize 24 hours unattended and remote-control function.

10. Copressed air is cleaner through cleaned by lubrication water, it can be directly used for breathing. The dew point of saturated compressed air is lower, and the water content of compressed air is lower by more than 25% than of an ordinary dry type oil-free screw air compressor.

11. The airend patent optimized design, large rotor, low rotary speed (within 3000r/min), without gearbox, direct connection drive, it has lower rotary speed and longer life compared with dry oil-free screw air compressor (10000r/min~20000r/min).

12. The function of automatic water exchange and automatic system cleaning can be realized, and the interior of the compressor is cleaner and sanitary.

⊙ Benefits of Frequency Converter

❃ Compressed air output adjusts according to demand
❃ Lower system pressure, energy saving
❃ No load-unload cycle, no power consumption
❃ Smooth start, no peak start current
❃ Greatly reduce energy consumption

⊙ compressor system flow chat

⊙ System flow chare for water lubricating oil-free screw air compressor (water cooling)

⊙ Remote control system

        Shanghai Schneider-Sunshine Mechanical Group is co-invested by Schneider Investment Group（Canada）,Shanghai Sunshine Co., Ltd and TMC Group (Italy), and mainly engaged in compressor manufacture, sales, Customer Service and its technology R&D. We have full experienced technology, advanced production equipment, complete quality assurance system and good sale-after service. We have a wide range of compressor products, including Screw Air Compressor, Permanent Magnetic Compressor, Process Screw Compressor, Vane Compressor, Oil-free compressor, Air Purification Equipment, Air Drier, Remote Monitoring System Based on IOT etc. and our products’ capacity covers from 1 m³/min to 100 m³/min. Our products have been certificated by “Shanghai Well-Known Brand Products” “Recommend Engineering Construction Products”, also our company is ISO9001:2008 and ISO14001:2004 Certificated enterprise, and one of the state-grade Hi-tech enterprise.

        Since its inception the company of his strong scientific and technological forces, advanced production equipment, has introduced new high-technology products. Products widely used in machinery, light industry, food, petroleum, chemicals, metallurgy, electricity, urban construction, medical research and scientific research for national defense and other industries. Products sold throughout the country and Europe, the Americas and Africa.

       The company's office corner, spacious office area, and various departments work closely together to provide customers with fast and convenient services.

        Company strictly abide by the group policy, adhering to the “people-oriented, credibility first, customer service” as the objective; Uphold the “scientific management, elaborate manufacture” as management concept; Adhered to the “cohesion, do better, boehner, innovation” for the enterprise spirit; Manufacturing enterprise will be “first-class air system” as the goal, the company in technology, quality, management, and equipment in the same industry leading position, the company will, as always, to high-quality products, excellent service sincerely cooperate with friends both at home and abroad, create brilliant.
