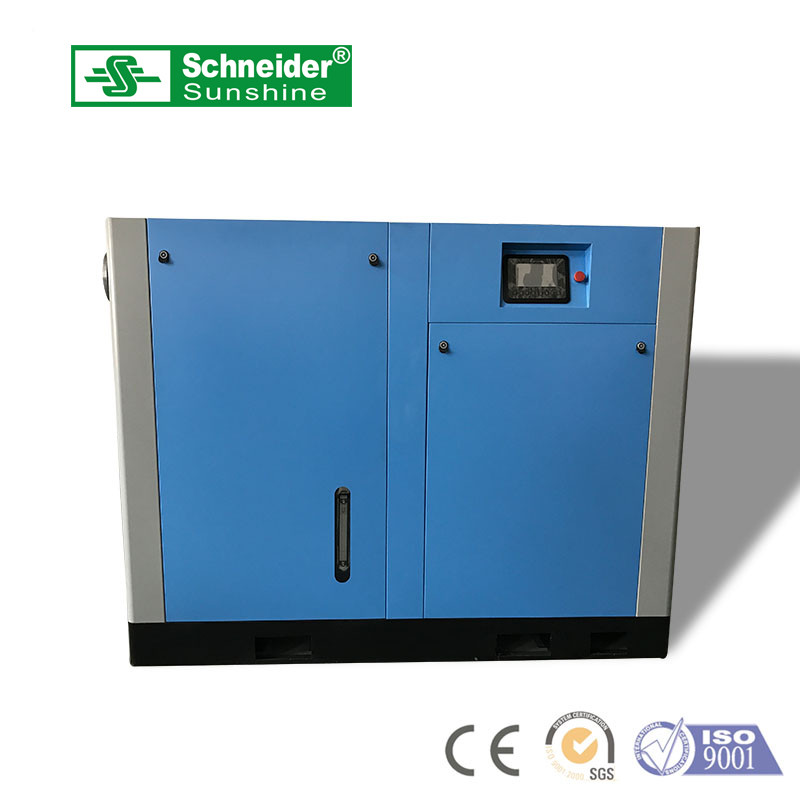

Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer

    Buy cheap Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer from wholesalers

    Buy cheap Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer from wholesalers
    • Buy cheap Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer from wholesalers

    Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer

    Ask Lasest Price
    Brand Name : Schneider Sunshine
    Model Number : SRC-110W-PM
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 100PCS/month
    Delivery Time : In 30 days after get the value
    • Product Details
    • Company Profile

    Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer

    water lubricating oil-free screw air compressor


    Oil-free:

    1. Air end: Inheriting the full-stainless steel oil-free air end of French.

    2. Motor: With the high-quality motor of well-known brand, IP code of IP 54, Level F of insulation level, grease lubrication, SKF bearing, high efficiency, the special design of the

    machine can be conducted according to the requirements of the users.

    3. Vapor separator: The delicate design of the full stainless steel vapor separating tank makes the vapor completely separate inside.

    4. Water screw controller: The advanced controlling and monitoring system can display all operation situation of the whole unit, together

    with RS485 interface fulfilling remote control.

    5. Air inlet valve: Patent air inlet valve 100% reliability.


    The technical advantage water lubricating oil-free screw air compressors


    1. With the fifth generation of oil-free screw airend technology. The compressor airend and system adopt stainless alloy, thus the technological transcendence from the copper airend to the stainless steel airend is realized.


    2. Integrated design is adopted for the whole machine. There are no complex pipelines and lines, and the fault points are less and more stable.


    3. Less maintenance consumables (air filter, water filter), easy maintenance, no professional staff is required to operate it, and less maintenance costs.


    4. There is absolutely no oil in compressor system, without any oil pollution risk, it gives guarantee of no oil in generated compressed air.


    5. Volumetric efficiency is higher based no isothermal compression. More than 15% energy is averagely saved compared with dry type two stage compression oil-free screw air compressor, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50℃, and there is risk of being burned.


    6. Wider pressure ranges:2-40Bar.


    7. The full intelligent CNC precise machining technology and the force balance of the airend running can ensure lower noise, smaller vibration, and longer service life.


    8. Averagely more than 10% air delivery is generated for the same power of water lubricating screw air compressors than the same power dry oil-free screw air compressor.


    9. More simple and convenient operation, PLC intelligent control is adopted. Automatic fault detection, fault warning, maintenance reminder, fault reminder, automatic protection function. It can realize 24 hours unattended and remote-control function.


    10. Copressed air is cleaner through cleaned by lubrication water, it can be directly used for breathing. The dew point of saturated compressed air is lower, and the water content of compressed air is lower by more than 25% than of an ordinary dry type oil-free screw air compressor.


    11. The airend patent optimized design, large rotor, low rotary speed (within 3000r/min), without gearbox, direct connection drive, it has lower rotary speed and longer life compared with dry oil-free screw air compressor (10000r/min~20000r/min).


    12. The function of automatic water exchange and automatic system cleaning can be realized, and the interior of the compressor is cleaner and sanitary.


    rigorous manufacturing process


    1. Strict process manufacturing process
    Every part is strictly inspected and perfected. Every procedure from raw materials to finished parts is strictly controlled to ensure that every part achieves excellent quality. Every part is optimized to ensure more durability.


    2. Super-mute design of the whole machine
    The whole chassis adopts super-silent design, low speed and large air volume cooling fan, and large cooler is used to reduce air convection friction, which has excellent cooling effect.


    3. Humanized Structure Design
    Humanized structure design, simple installation, and follow-up maintenance more convenient, polar maintenance costs, without professional staff, users can also be self-maintenance, maintenance, easy to popularize.


    4. Super Clean System and Compressed Air
    Stainless steel synthetic material is used in the whole system to ensure the durability, long service life, compressed air "0" pollution, more energy-saving, stable, green and environmental protection.


    compressor system flow chat


    Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer

    System flow chare for water lubricating oil-free screw air compressor (water cooling)


    Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer


    Remote control system


    Large Capacity Industrial Oilless Air Compressor 110KW With Air Dryer


    Technical services:

    Whether pre-sale, in-sale or after-sale, as long as users need technical assistance and consultation, the company will provide free technical support within 24 hours. After successful commissioning on site, our company's after-sales service engineer is responsible for regular operation training for user's operators. During the quality guarantee period, after-sales service engineers arrive at the site within 24 hours (except in remote areas) after receiving notification of failure of user equipment. The honest service of enterprises is highly praised by users.


    PM series energy-saving permanent magnetic airable frequency oil-free screw air compressor detailed parameters

    ModelMaximum
    working pressure
    FADMotor powerNoisePipe diameters of cooling water in and outQuantity of cooling waterQuantity of lubricating waterDimensionWeightAir outlet
    Inlet water 32℃L×W×H
    MpaM³/minKWDBT/HLmmKG
    SRC-06A/W-PM0.80.3~0.785.5573/4″1.510800X800X11004603/4″
    1.00.2~0.65
    SRC-08A/W-PM0.80.35~1.177.5573/4″210800X800X11005103/4″
    1.00.3~1.05
    1.250.24~0.81
    SRC-11A/W-PM0.80.54~1.7211601″2.5261200X800X13006203/4″
    1.00.45~1.42
    1.250.35~1.10
    SRC-15A/W-PM0.80.75~2.4315601″3.5261200X800X13006701″
    1.00.65~2.17
    1.250.60~1.80
    SRC-18A/W-PM0.80.90~3.1318.5631″4261400X1000X15207301″
    1.00.90~2.82
    1.250.60~2.05
    SRC-22A/W-PM0.81.1~3.722631″5301400X1000X15207801″
    1.00.97~3.21
    1.250.85~2.78
    SRC-30A/W-PM0.81.55~5.230661 ½″7401500X1150X150011501 ½″
    1.01.255~4.43
    1.251.1~3.36
    SRC-37A/W-PM0.81.91~6.5037661 ½″9401500X1150X150012001 ½″
    1.01.60~5.33
    1.251.42~4.77
    SRC-45W-PM0.82.50~8.3045681 ½″10901800X1300X175014902″
    1.01.91~6.30
    1.251.70~5.56
    SRC-55W-PM0.83.00~10.3055691 ½″121001800X1300X175015702″
    1.02.60~8.55
    1.252.3~7.67
    SRC-75W-PM0.83.95~13.0075721 ½″181001800X1300X175017502″
    1.03.40~11.50
    1.253.00~9.70
    SRC-90W-PM0.85.00~16.6090731 ½″201202200X1550X180024502 ½″
    1.04.30~14.66
    1.253.72~12.60
    SRC-110W-PM0.86.00~20.20110772″241202200X1550X180025802 ½″
    1.05.00~16.66
    1.254.65~15.56
    SRC-132W-PM0.86.75~22.52132772″301202200X1550X180027002 ½″
    1.06.00~19.97
    1.255.07~16.90
    SRC-160W-PM0.80.85~28.11160793″351603000X1800X210039003″
    1.07.60~25.45
    1.256.70~22.52
